Hi guys just joined as I saw the earlier mention of the awesome milled intake manifold but not much info on it. There was an awesome thread about the development of that manifold and the theory behind diffusers etc over on a forum I checked out a while ago and thogh it might come in handy http://forums.hybridz.org/showthread.php?t=127863
I've been searching for a reasonably priced shim under bucket solution, and thought I'd found a Toyota solution recently.
The 3SGTE engine has 6.00mm valve stems and uses 31mm buckets (like the 1UZ, 2JZ and several other engines) but unlike the USDM versions of these other engines, which use shim-over-bucket (SOB) setups the JDM version of the 3SGTE uses a shim under bucket (SUB) setup.
Unfortunately neither this engine, nor its valve train were exported to the USA, so these parts are not available through our normal Toyota channels.
In the Netherlands, Arnout and Fasteddie have adapted this SUB 3SGTE setup to their 1UZ build here: http://www.lextreme.com/forums/showthread.php?t=10244&page=2, but technical details and specifications about the SUB retainer were lacking, so I decided to try to acquire one to get the specs.
JustenGT8 was kind enough to purchase and send me a sample retainer from this 3SGTE setup (Thanks again Justen!), so I wanted to share its specs and some pics with everyone.
First off, this isn't the magic bullet I'd hoped it would be for those of us in the USA. It requires an odd size (14mm) shim that no other USDM Toyota engine uses, and it does not fit over the 1UZ's valve springs, but requires a valve spring with a slightly larger ID. But on to the pics and specs.

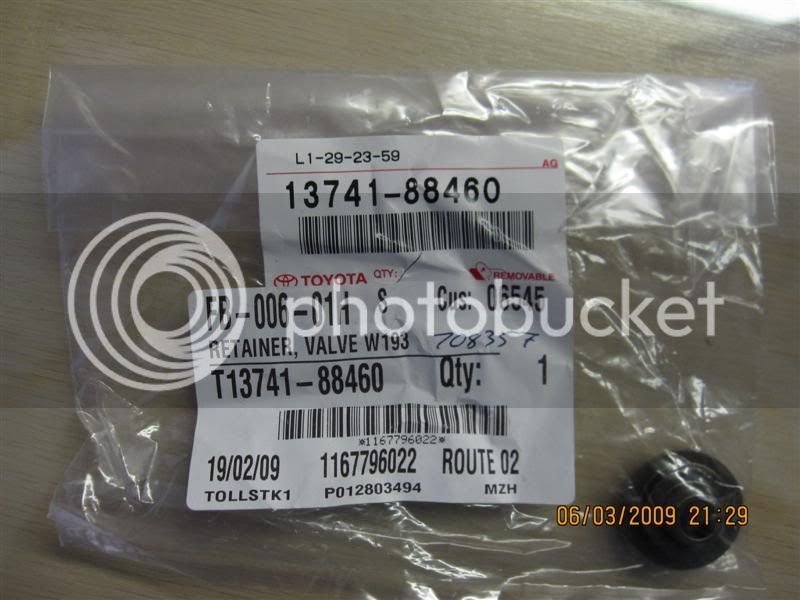

Here's the retainer as it arrived, in the Toyota plastic bag, showing all the P/N's:
And the retainer fit onto a stock 1UZ valve, with 6.00mm valve stem. Very encouraging so far:

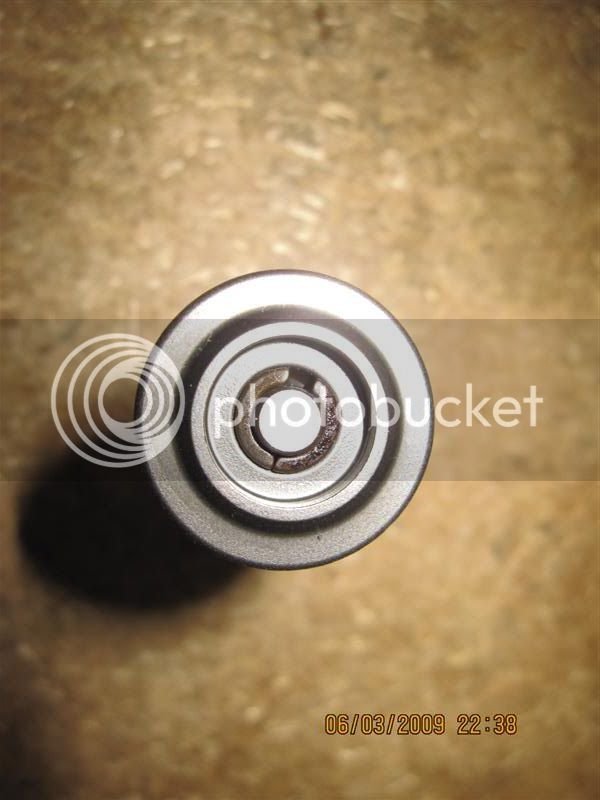

Shot from the top:

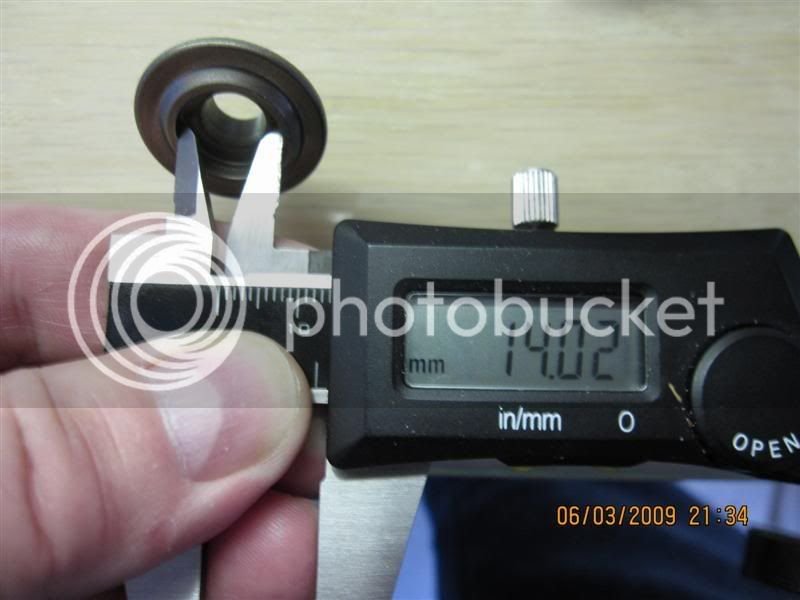

Here's where it started to go pear shaped: The ID of the shim perch is 14.02mm, so 13.95 to 14mm shims are required......that's strike one.
AFAIK this size shim does not exist in any another USDM Toyota engine, nor any motorcycles imported to the USA (they use 7.48, 9.48, 13mm). Perhaps some other car manufacturers use 14mm shims - I'll have to do some research there.

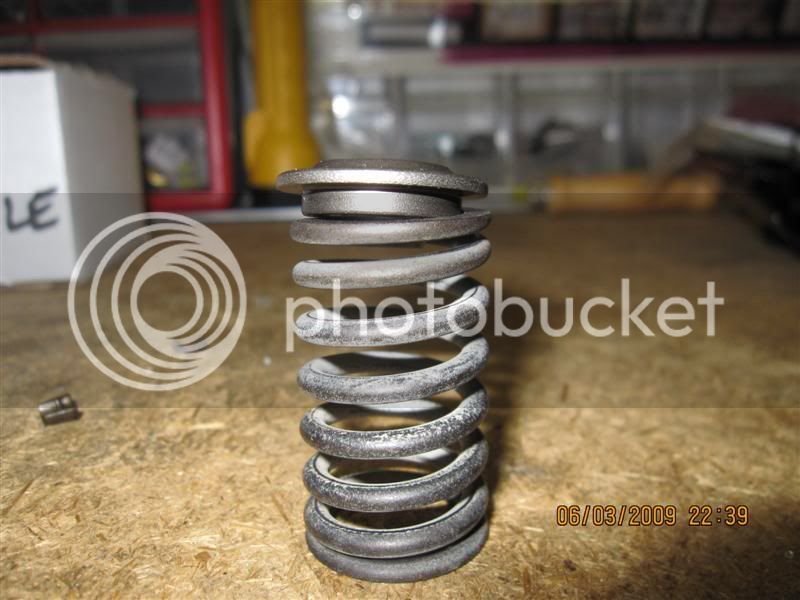

Retainer sitting on a stock 1UZ spring, hmmm that won't work, there's strike 2:

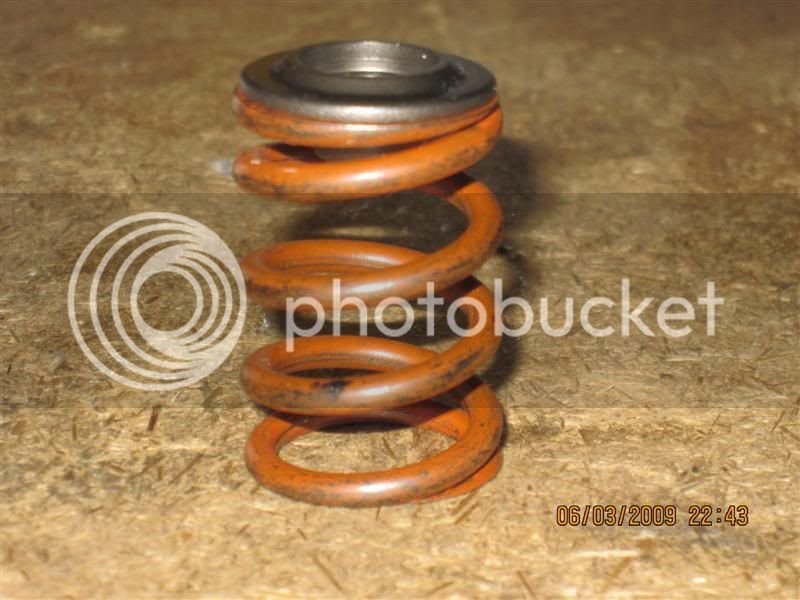

And on the Manley Honda B motor spring that I have:

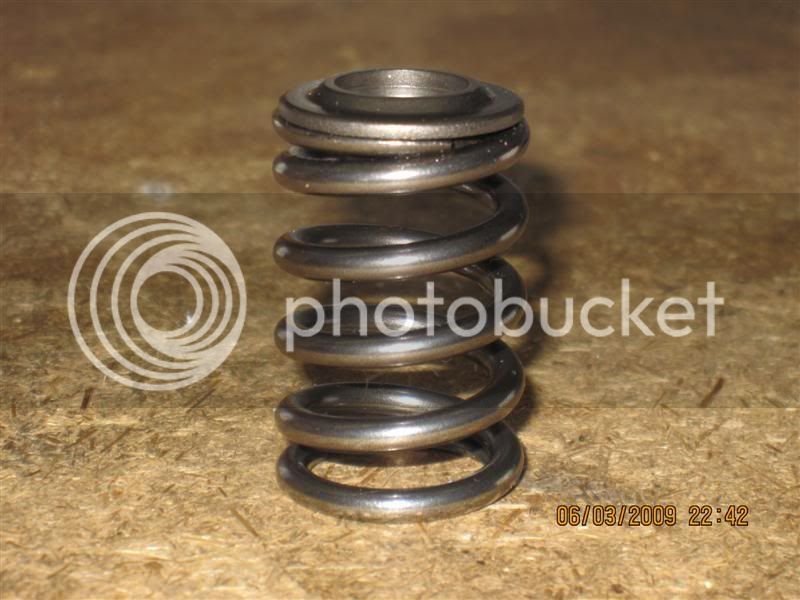

And on the Supertech Honda B spring:

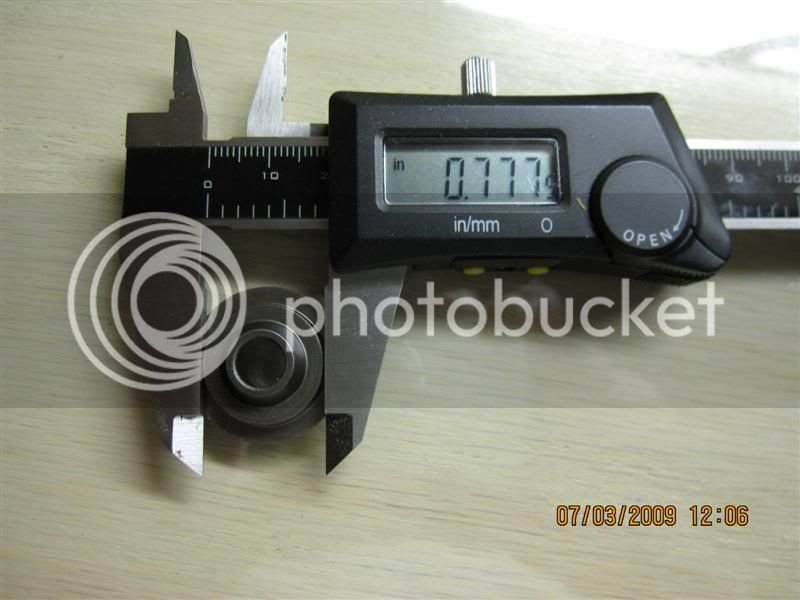

And showing the dimension of the spring perch at 0.777".
1UZ springs are 0.707" ID, so that's why this won't work on them. Supra 2JZ-GTE springs are 0.708, so those won't work, and the Lextreme springs are 0.703, so those are a non-starter too.
The Manley and Supertech springs in the photos above are 0.820" and 0.787" ID, so that's why they work fine with this retainer, but they're a bit too large an OD for the spring seats in the 1UZ head, which can only take about a 1.025" maximum OD spring without modification <sigh>.
Obviously, a 3SGTE spring will work with this retainer, but I don't have one to measure; further, I suspect the OD of a 3SGTE spring is going to be too large to fit in the spring seat in the UZ head, just like the Manley & Supertech springs (and perhaps this is what Arnout was alluding to here: http://www.lextreme.com/forums/showpost.php?p=101471&postcount=30).
So in summary, although this 3SGTE retainer looked encouraging initially, it probably won't work in the early 1UZ engine without larger springs, which will then require machining of the heads' spring seats. It also requires an odd size shim, which I don't think can be purchased through Toyota North America.
The 3SGTE engine has 6.00mm valve stems and uses 31mm buckets (like the 1UZ, 2JZ and several other engines) but unlike the USDM versions of these other engines, which use shim-over-bucket (SOB) setups the JDM version of the 3SGTE uses a shim under bucket (SUB) setup.
Unfortunately neither this engine, nor its valve train were exported to the USA, so these parts are not available through our normal Toyota channels.
In the Netherlands, Arnout and Fasteddie have adapted this SUB 3SGTE setup to their 1UZ build here: http://www.lextreme.com/forums/showthread.php?t=10244&page=2, but technical details and specifications about the SUB retainer were lacking, so I decided to try to acquire one to get the specs.
JustenGT8 was kind enough to purchase and send me a sample retainer from this 3SGTE setup (Thanks again Justen!), so I wanted to share its specs and some pics with everyone.
First off, this isn't the magic bullet I'd hoped it would be for those of us in the USA. It requires an odd size (14mm) shim that no other USDM Toyota engine uses, and it does not fit over the 1UZ's valve springs, but requires a valve spring with a slightly larger ID. But on to the pics and specs.
Here's the retainer as it arrived, in the Toyota plastic bag, showing all the P/N's:
And the retainer fit onto a stock 1UZ valve, with 6.00mm valve stem. Very encouraging so far:
Shot from the top:
Here's where it started to go pear shaped: The ID of the shim perch is 14.02mm, so 13.95 to 14mm shims are required......that's strike one.
AFAIK this size shim does not exist in any another USDM Toyota engine, nor any motorcycles imported to the USA (they use 7.48, 9.48, 13mm). Perhaps some other car manufacturers use 14mm shims - I'll have to do some research there.
Retainer sitting on a stock 1UZ spring, hmmm that won't work, there's strike 2:
And on the Manley Honda B motor spring that I have:
And on the Supertech Honda B spring:
And showing the dimension of the spring perch at 0.777".
1UZ springs are 0.707" ID, so that's why this won't work on them. Supra 2JZ-GTE springs are 0.708, so those won't work, and the Lextreme springs are 0.703, so those are a non-starter too.
The Manley and Supertech springs in the photos above are 0.820" and 0.787" ID, so that's why they work fine with this retainer, but they're a bit too large an OD for the spring seats in the 1UZ head, which can only take about a 1.025" maximum OD spring without modification <sigh>.
Obviously, a 3SGTE spring will work with this retainer, but I don't have one to measure; further, I suspect the OD of a 3SGTE spring is going to be too large to fit in the spring seat in the UZ head, just like the Manley & Supertech springs (and perhaps this is what Arnout was alluding to here: http://www.lextreme.com/forums/showpost.php?p=101471&postcount=30).
So in summary, although this 3SGTE retainer looked encouraging initially, it probably won't work in the early 1UZ engine without larger springs, which will then require machining of the heads' spring seats. It also requires an odd size shim, which I don't think can be purchased through Toyota North America.
Attachments
E
ed_ma61
Guest
1 - buy vvti engine/heads
2 - get free SUB assembly
3 - enjoy 1mm OS, 5.5mm valves, superior ports and added vvti tourque
.....
4 - ???profit
either that or just do the basic machine work required to get what you want to fit. you do realise that without any machine work youre still going to be limited to .400 lift? why go to all the effort to avoid machine work when if you dont, its all rather half hearted anyway. or are you just trying to make it difficult?
2 - get free SUB assembly
3 - enjoy 1mm OS, 5.5mm valves, superior ports and added vvti tourque
.....
4 - ???profit
either that or just do the basic machine work required to get what you want to fit. you do realise that without any machine work youre still going to be limited to .400 lift? why go to all the effort to avoid machine work when if you dont, its all rather half hearted anyway. or are you just trying to make it difficult?
I'm not trying to make things difficult Ed, I'm trying to keep my Opcon-Autorotor supercharger and Richwood manifold setup, which only fits the early 1UZ. I well realise the advantages the later VVTi setups have, but:
1) Those engines aren't nearly as plentiful as the old 1UZ's at the salvage yards
2) When they are available, they're 3x the price of the early 1UZ's
3) Supercharger manifolds aren't available for them, AFAIK. Andrew @ Richwood says he has one, but I've yet to see a photo of it.
1) Those engines aren't nearly as plentiful as the old 1UZ's at the salvage yards
2) When they are available, they're 3x the price of the early 1UZ's
3) Supercharger manifolds aren't available for them, AFAIK. Andrew @ Richwood says he has one, but I've yet to see a photo of it.
If you're trying to replace an existing 1UZ SOB setup with shimless, it's going to be a challenge. The minimum thickness of a SOB setup is 7.02mm and the maximum is 7.82, so it's going to be out of the range for a shimless setup.
The shimless buckets (that we have in the USA) only come in a range of 5.06 to 5.74mm. You may have access to a wider range of shimless buckets than we do, however.
SUB by itself is good for 7.42 to 8.22 using OEM shims. More is available on the top end by going to custom shims from Precision.
The most flexible shimming option I've found is a combination of shimless and SUB. This can get you a range of lash adjustment from 5.06 to 8.54mm.
On my last engine build, we did just that. We needed more shimming than either SUB or shimless could provide, so we started with the thickest shimless buckets, and added the necessary SUB type shims under them (using the proper SUB type retainers, of course)
The shimless buckets (that we have in the USA) only come in a range of 5.06 to 5.74mm. You may have access to a wider range of shimless buckets than we do, however.
SUB by itself is good for 7.42 to 8.22 using OEM shims. More is available on the top end by going to custom shims from Precision.
The most flexible shimming option I've found is a combination of shimless and SUB. This can get you a range of lash adjustment from 5.06 to 8.54mm.
On my last engine build, we did just that. We needed more shimming than either SUB or shimless could provide, so we started with the thickest shimless buckets, and added the necessary SUB type shims under them (using the proper SUB type retainers, of course)
