Lexus Toyota LS400/Celsior LCD Replacement (Climate Control Repair)

We carry the following Lexus & Toyota LCD Replacement:

  1. 90-92 LEXUS LS400 LHD
  2. 93-94 LEXUS LS400 LHD
  3. 93-94 LEXUS LS400 RHD
  4. 92-96 LEXUS SC300 LHD
  5. 92-96 LEXUS SC400 LHD
  6. 92-96 LEXUS SC J SPEC / SOARER RHD (TT)
  7. 92-96 LEXUS SC J SPEC / SOARER RHD (V8)

Black out LCD is almost in all first generation SC400 and LS400 or Celsior.  If you are driving a 90-94 LS400/Celsior or 1992-1996 SC400 (SC400 LCD Replacement Tutorial), its time to change it out. More detail installation instruction on the SC400/Soarer.

We are offering the LCD part with little soldering skills you can complete refurbish your ride.  For an average person, the step by step instruction should able to get through this project.  However, if you like you can take your LCD and the oem climate controller and they can swap it out for you.  It was just too expensive to replace it with Lexus OEM climate control.  Local dealers are asking $750 USD.

Some re-manufacture unit runs about $300.  Can not justify paying that much just for a display.  This is a very common problem with the Lexus LS400/Celsior from 1990-1994 or SC400 1992-1996.  As you might guessed I tried the capacitors replacement and did not do any good.  There aren’t too many choices for fixing the Lexus Climate/Clock LCD Display.

One is to get an re-manufactured unit from a company in California for $300 or get a used LCD from a junkyard.  However, getting it from a junkyard has no guarantee and most of the LCD over a decade would have the same problem sooner or later and the price would run you about $250-300.

This is the best bang for your buck.  Now available in both Left Hand Drive (LHD) like the U.S. Spec LS400 and Right Hand Drive (RHD) like J-Spec Celsior

Here is the tutorial of this replacement process:

The following instructions are for the removal of the A/C Climate Control Unit on 1990 through 1994 Lexus LS400 model vehicles.




A/C Climate Control Removal Instructions

The following instructions are for the
removal of the A/C Climate Control Unit
on 1990 through 1994 Lexus LS400 model vehicles


Notes:

    1. On step 1, don’t pull the rear part of the console cover up more than
      an inch or so because you can break off the clips that hold the front of
      the console cover. Then slip the console cover back about an inch to
      disengage the front clips. It helps to put the car in neutral in order to
      remove the console cover over the shifter.
    1. On step 3, the air register just pries right out, go straight back,
      not at an angle.
    1. Careful on step 4 not to drop the screws, they are hard to fish back
      out. If you do anyway, use a magnet to retrieve them.
    1. The diagram doesn’t show it, but when you pull the Radio and AC
      Control assembly out as far as you can, you then have to unplug all the
      plugs on the back of the two units in order to fully remove them from the
      car. All the plugs have a locking mechanism on them. You must push on the
      locking tabs quite hard in order to disengage the locking mechanism and
      unplug the plugs.



  1. After removing the A/C Climate Control assembly from the radio
    assembly, package it carefully with at least an inch of cushioning
    packaging material on all 6 sides of the unit. Make sure your name,
    address, phone number, and email address are included on the inside of the
    package.




Here is my blackout LCD display. As you can see, its ugly!




A closeup of my ugly, burnout and blackout LS400 LCD Display




Here I used red arrows to demonstrate the site where there are clips that hold the ashtray.




This picture is where the ventilation outlet was removed and the two screws need to be removed.




This picture is taken without the ashtray and two screws are holding the climate/stereo unit.




After you remove the climate/stereo unit. This is a sideview and you only need to remove the top two screws.




A closer look at the top two screws.




Here is a picture of seperating climate and stereo unit apart.




After the LCD climate unit is seperated, there are two side screws need to be remove.




Removing the side screws.




After the two side screws removed, there are couple of screws on top.




After you remove the top and side screws, the unit will slide right out.




This is how it look like when it out.




This is a closeup on the LCD display. The black panel needs to be removed. There are about 7-8 screws holding it in.




Here are the basic tools you will need beside the screw driver.

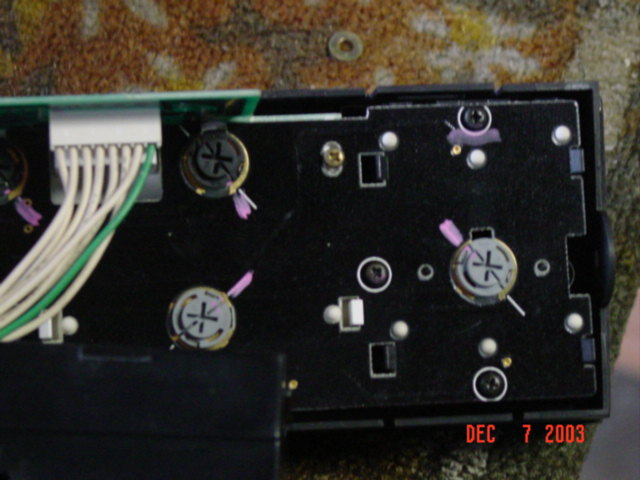

This is how it looks like when the back cover is removed.




Now the LCD is totally out. I dont recommend this procedure.

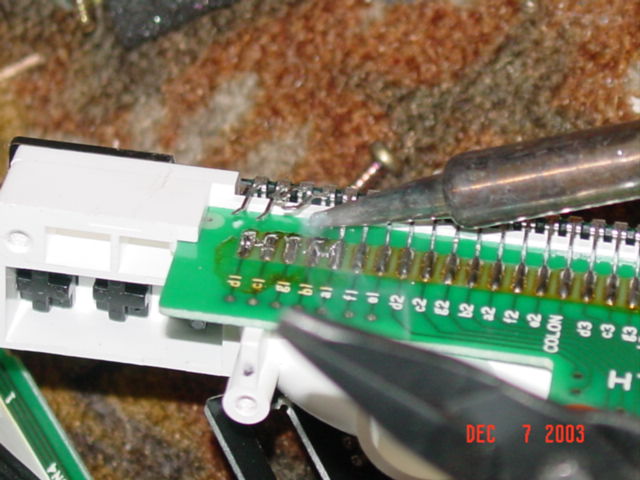

Using the heated solder and start removing every single pin.




A closer look at the pins bring removed.




Cleaning up the old solder with a solder removing wire.




Now the old dead lcd is out.




New LCD being solder in. Its pretty much plug & play.

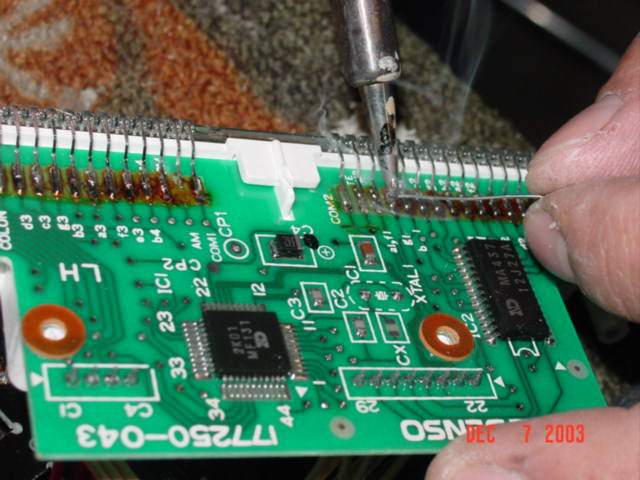

Soldering it in. Becareful don’t over solder.




A closer look at the new lcd being solder.




After all the pins are soldered, I used a volt meter to test the conductivity of the soldering.




This is what I am talking about. You can get a cheap volt meter for few dollars. U must test it first before putting everthing back.




More testing.




Reinstall everything and the final product….




Testing the unit with power. You can see temperature and time on the LCD.




This is the working product. Very happy!


Tools: The basic tools I used for this project was a screw driver, solder,
solder cleaner and a volt meter

Time: Took me about  an hour.  Since this is my first time.

Warning: Since your unit had been exposed to extreme temperature like
heat, cold, sunlight and UV light for the past 12-14 years.  The clock
control bottoms sometime get stuck into the plastic plate.  Secondly, there
is also some glue on the plastic face cover.  If the used LCD
doesn’t come out easily, do not force it out.  You will break the plastic
piece guarantee .  To avoid this problem, from my personal experience I
recommended that you should use a blow dryer and slowly heat up the LCD and the plastic plate
from the back.  This will take about 5-8 minutes.  Be patience the
glue will soften up.  Don’t heat
the LCD in the front of the unit.  Heat it from behind.  With heat,
this piece will come out easier.

Impression:  I am so impress with Jim’s LCD product.  Its easy and
no guess work.  I highly recommend this product to all the first generation
Lexus LS400 owners.  Its affordable and very easy task.

Here are some pictures of RHD LCD replacement.

1. You can buy just the LCD module that you install yourself (lots of soldering, somewhat
difficult, no warranty) comes with instructions for $160 + $10 S&H.
RHD LCD is $170 plus $20 for shipping).
Now available both RIGHT or  LEFT HAND DRIVE from 1990-1996…  US-Spec LS400 OR J-SPEC CELSIOR.


US Spec 90-94LS 400 LS400 (LHD)
and 1992-1996 SC300/SC400
$160 Plus $10 (Installation
Instruction)

Year
Model

J-Spec 90-94 Celsior & 92-96 Soarer (V8) or Soarer (TT) Right Hand Drive (RHD) $170 plus $20 for International
shipping.  (Installation
Instruction)

Year
Model

4. LCD Display Background light bulbs, $5 each


Year

What would I do differently?  You must be careful removing the LCD.  Since it last installed and heat, sometime the clock got stuck on the plastic cover.  Use extra caution on removing the LCD.  Secondly, don’t stay on the pin for too long when you use the solder.  You can easily burn the  board.  The project can be done by an average handy person.  If you are not comfortable with it, I would highly recommend someone with soldering experience or we can do it for you.  Good luck!  Once again, Jim did a great job on this unit.
