LS400 Alternator Wiring

[MaccyD]

Need a bit of help. Trying to wire the 3 pin plug of a 96 UK LS400 into the 2 wires i have on the chassis loom in my 200SX.

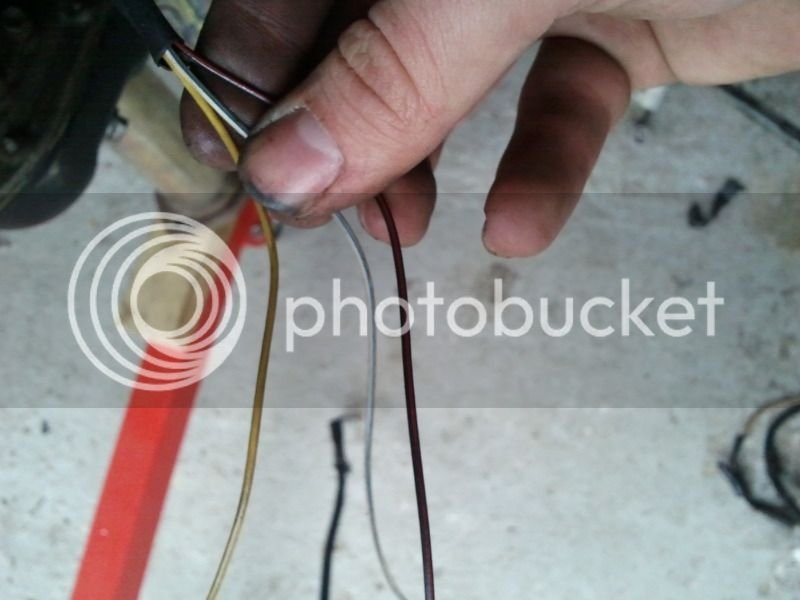

Heres the picture of the LS400 plug, ive got Black and Red, White and Blue, and Yellow.

If you can help me identify these id really appreciate it.



[MaccyD]

Nobody got this info? Ive seen a diagram for how to wire it up but its too small and blurry :-(



[Bushwhacker]

Heres the picture of the LS400 plug, ive got Black and Red, White and Blue, and Yellow.

If you can help me identify these id really appreciate it.

What plug ?



[MaccyD]

The alternator plug, for an LS400



[gloverman]

There are two different alternator plugs , a round one and an rectangle type one.
Black yellow is ignition , white/blue is sense and yellow is light. Cheers



[MaccyD]

Ah right. Mine is an oblong plug. But ive got

White/blue

Yellow

Red/Black

Im guessing we can say that i just have blakc and red for ignition instead of black and yellow.



[gloverman]

yes thats right.



[MaccyD]

Thanks gloverman. Just need to fill in the gap now then as my 200sx only has 2 wires!



[MaccyD]

I have permanent live and warning lamp in the 200sx. I need to find a switched live from somewhere to wire into the 3rd plug.
