Lextreme II
Active Member

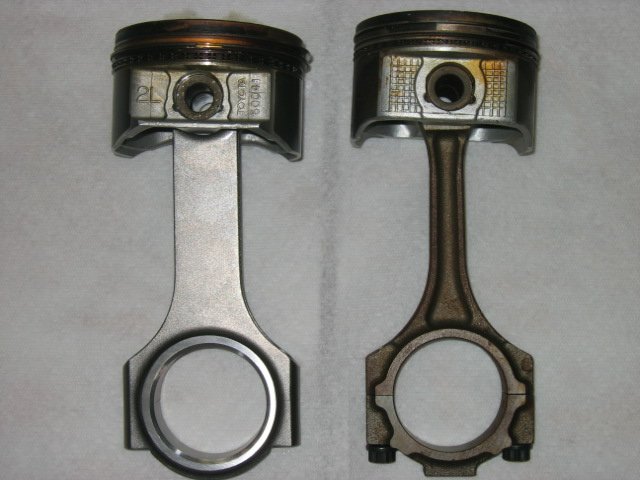

I have some pictures below to show the difference in size between the stock post 1998 rod (1uzfe, 2uzfe and 3uzfe) and one of ours. The forged H beam rod u see is attached with a stock 2uzfe pistons and the picture on the right is a standard GS430 piston/rod.
If size matters, then you can clearly see the difference between the two. Enjoy.....
The weight is about the same. The stock 1uzfe with bolts is about 628 grams and the forged H beam without bolts 616 grams. I need to find out how much the bolts will weight.

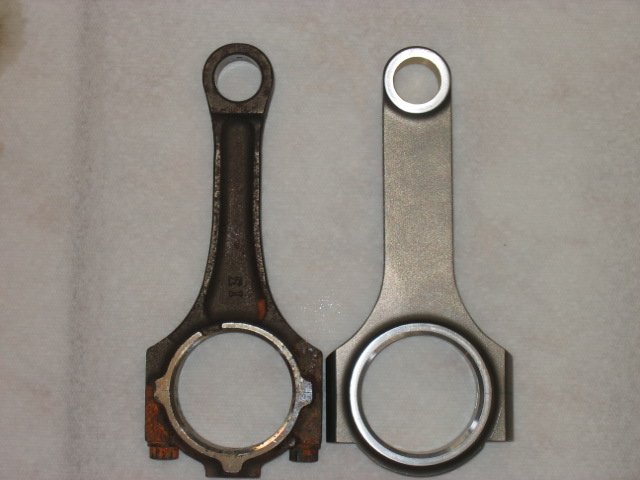

The second picture is comparing 1uzfe rod.

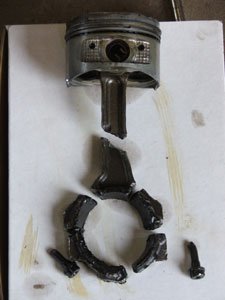

The last picture is from one of our members with broken rod.

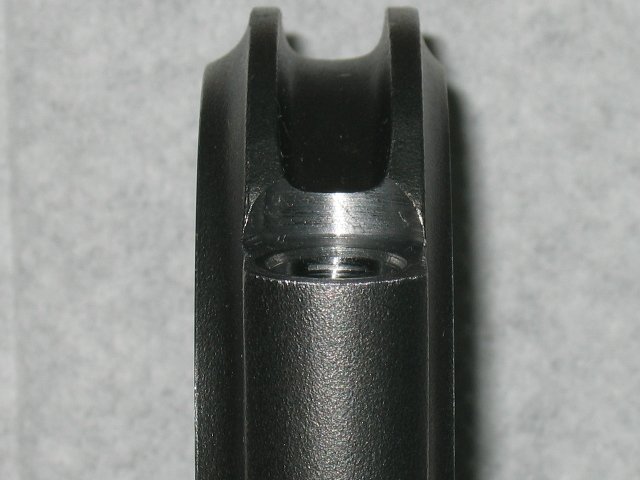

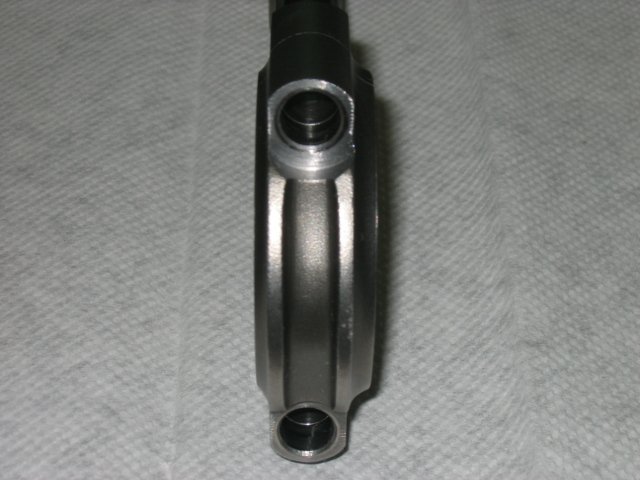

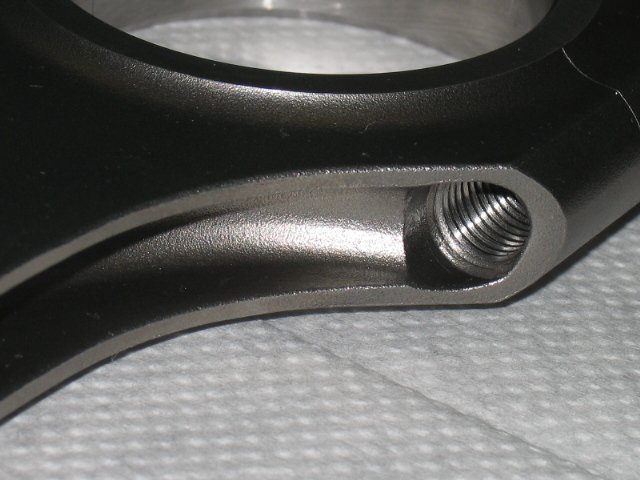

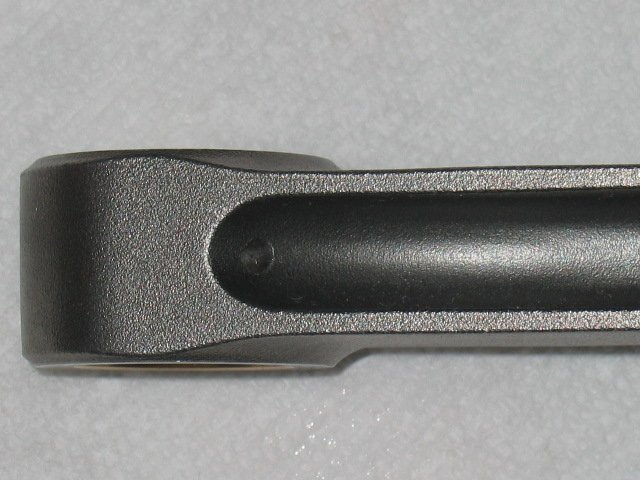

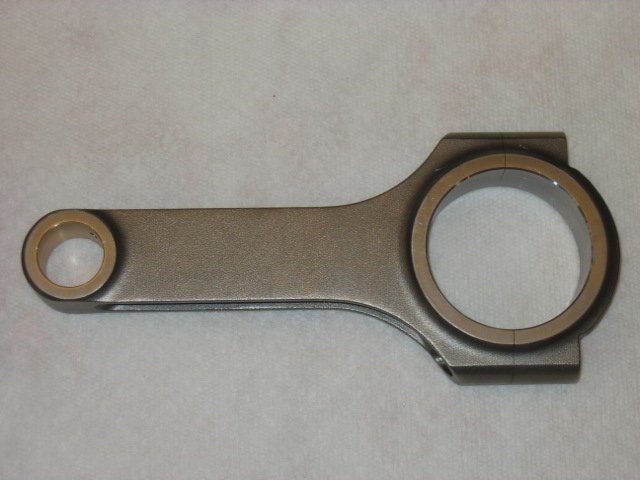

Two more pictures of this forged h beam rod:
If size matters, then you can clearly see the difference between the two. Enjoy.....
The weight is about the same. The stock 1uzfe with bolts is about 628 grams and the forged H beam without bolts 616 grams. I need to find out how much the bolts will weight.
The second picture is comparing 1uzfe rod.
The last picture is from one of our members with broken rod.
Two more pictures of this forged h beam rod:
